Automated Storage & Retrieval System for Pallets - SSI Exyz

Maximum Energy and Cost Efficient for Automated Storage Warehouse

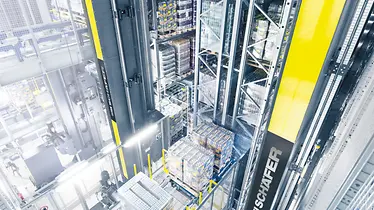

The SSI Exyz storage and retrieval machine (SRM) enables efficient storage of pallets and other large load carriers in an automated high-bay warehouse.

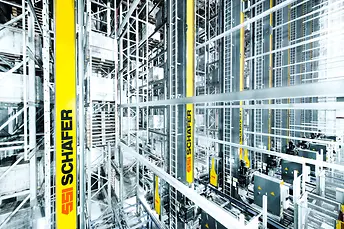

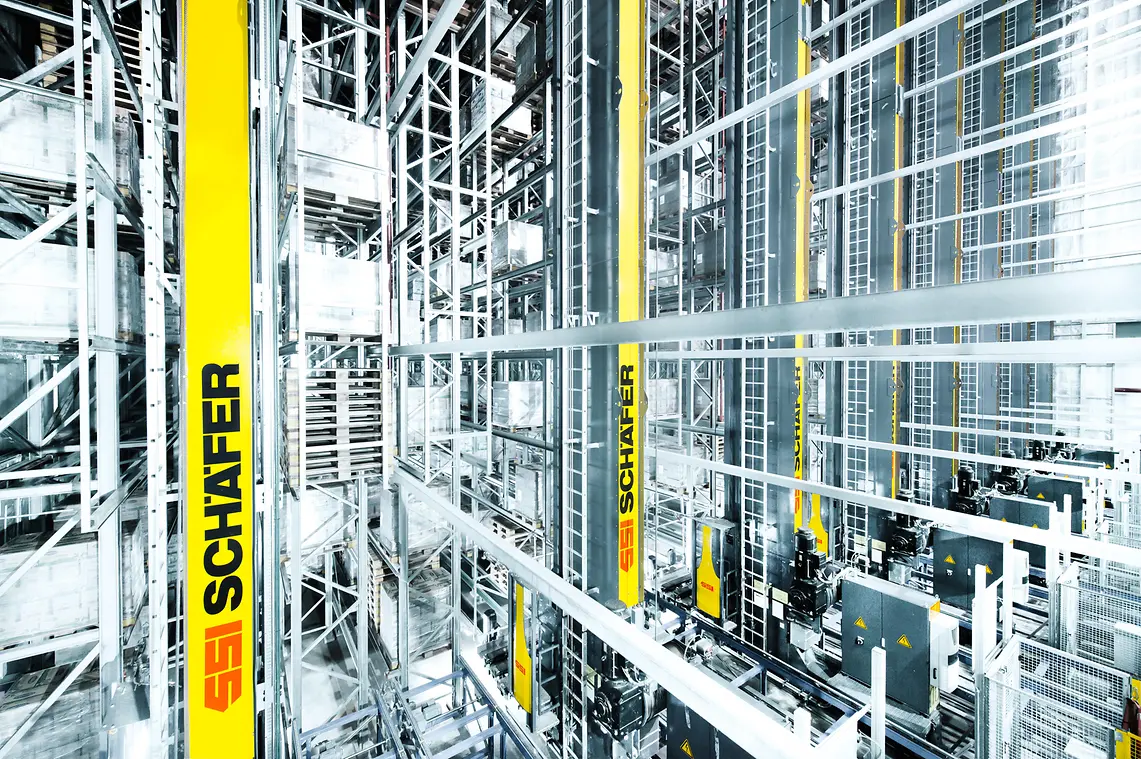

Designed for versatility, it operates in tropical conditions or deep-freeze environments as cold as -30°C. Whether in a high-bay warehouse with heights up to 45 meters, a built-in structure or silo warehouse, or standard warehouses with channel storage systems. The SSI Exyz supports single-deep, double-deep, and multi-deep storage configurations. Benefit from a modular and customized solution tailored for automated pallet warehouses.

The modular design of the storage-retrieval machine ensures maximum flexibility together with short delivery and installation times. Benefit from a customized solution as well as enhanced cost and space efficiency.

The advantages at a glance:

Ideal automated storage and retrieval system for pallets and other large load carriers
Modular design with short delivery and installation times
Enhanced cost and space efficiency with high-density storage system
A flexible automated storage system that operates with SRMs or with pallet shuttles
Efficient energy usage: Green Crane Technology

Need more information? Contact us

Advanced Technologies for Automated Storage & Retrieval Systems

Whether it’s handing pallets or containers, cartons, and trays, we have the right automated system for your warehouse. Get our product brochure.

Download brochure

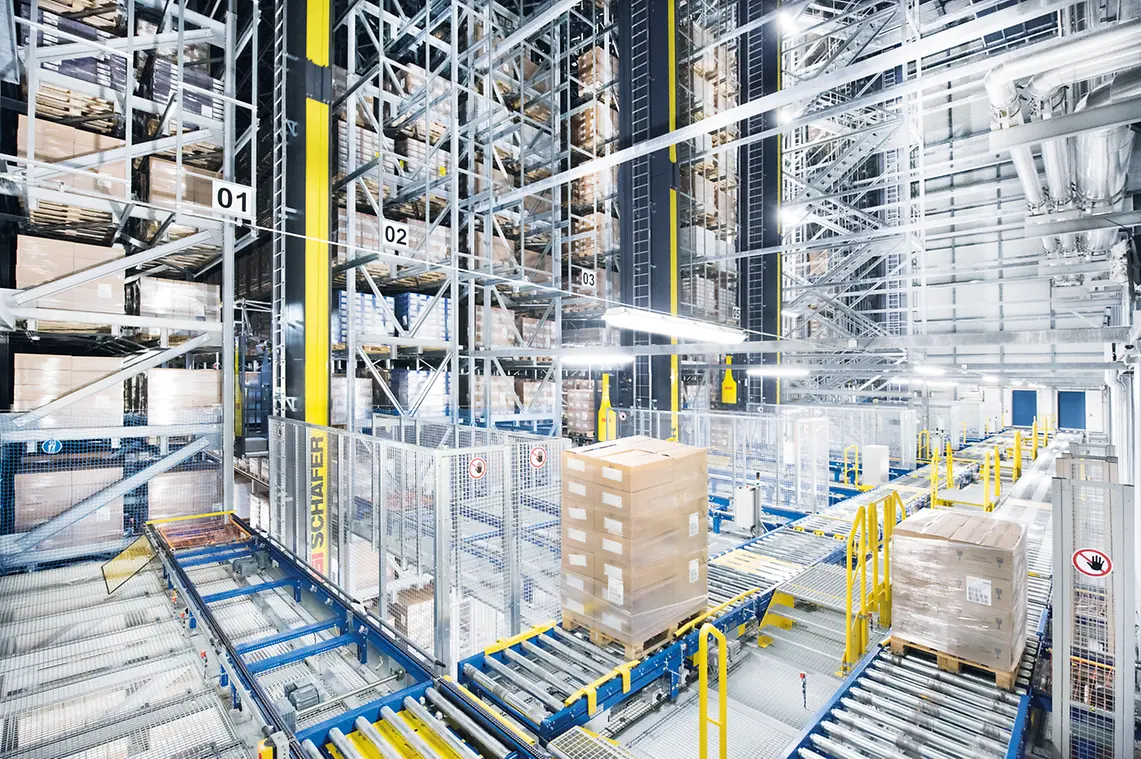

ASRS Pallet Warehouse: Fast and Flexible

With a fully automated storage/retrieval system, you can store more in a smaller space, quickly and safely. Storage-retrieval machines and pallet shuttle systems guarantee fast and flexible material transport.

Consult our experts

Significant Reduction in Operating Costs for Automated Storage Systems

The SSI Exyz is a software-integrated ASRS that operates on the goods-to-person principle, delivering high throughput with minimal errors in a pallet warehouse.

Fully customizable solution for automated pallet storage

Available as a single or twin mast stacker crane system

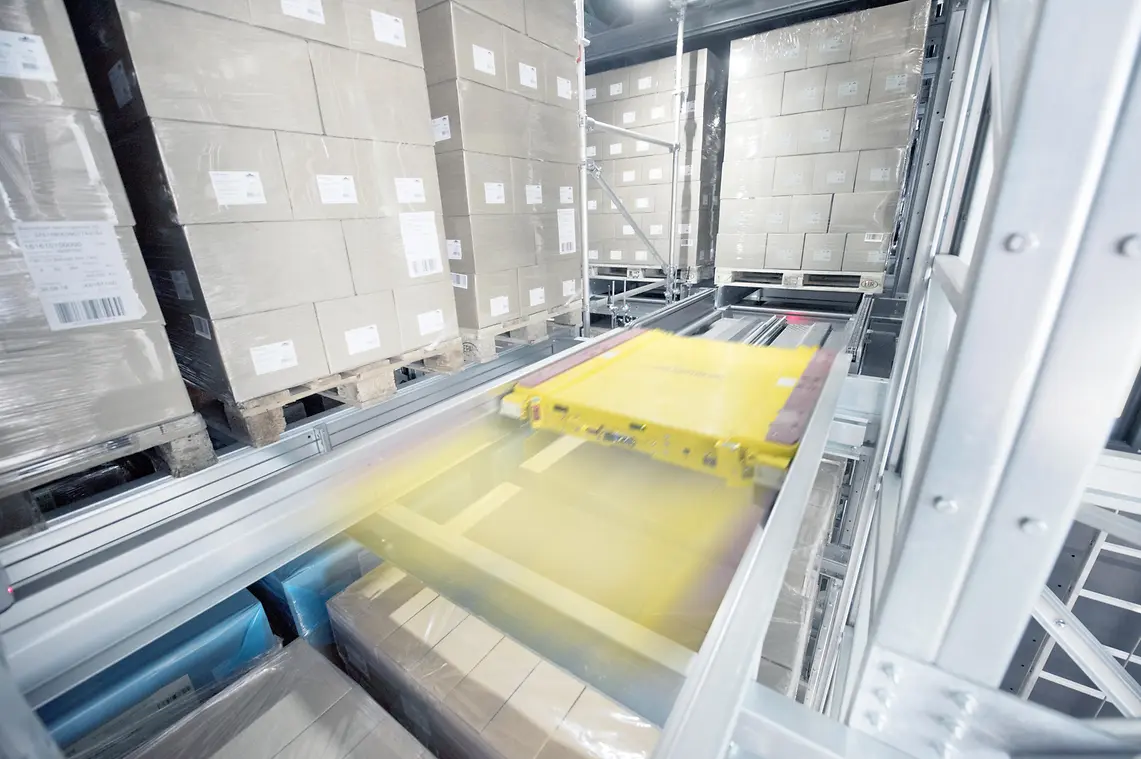

Integration of SSI Orbiter LHD for use in channel storage

Seamless Integration and Sustainability

The designation “Exyz” describes exactly what distinguishes the storage and retrieval system. The “E” stands for efficiency in energy consumption and performance for all three axes “x”, “y”, and “z” on which storage and retrieval machines work.

Due to the consistent use of state-of-the-art control technologies, the SRM requires only a minimum of spatial reserves. The interlocking design of the floor supports, pallet truck, and boom further enhance this benefit. This innovative boom concept from SSI SCHAEFER is unique in the market. Moving counterweights integrated into the boom can be fitted and compensate for up to two-thirds of the pallet truck’s own weight. This improves performance while also decreasing the amount of energy needed. As a result, you achieve energy savings of up to 25% in comparison to conventional machines with the lifting alone. This is part of the Green Crane Technology from SSI SCHAEFER. These technologies also include:

Energy-optimized overlapping paths for multiple SRMs
Direct current coupling to the drive controller to transform the braking energy of one drive into drive energy for another motor
Return of the brake energy to the electricity supply network
Targeted speed adaptation and acceleration of the storage and retrieval machine

As with all storage and retrieval machines from SSI SCHAEFER, SSI Exyz is part of a fully automated storage system consisting of a racking system, a suitable SRM, perfectly matching conveying systems, and the right warehouse software.
