Vertical Lift Module SSI LOGIMAT®: efficient, compact, reliable

Our Vertical Lift Module for Small Parts Storage and more efficient picking in one. Space-saving, efficient and ergonomic - the vertical Lift Module that offers everything at once!

Vertical Lift Module LOGIMAT

Small Parts Storage challenges - solved by SSI LOGIMAT Vertical Lift Module

Save space, gain efficiency, increase egonomics or master the path to digitization. SSI SCHAEFER's SSI LOGIMAT Vertical Lift Module is a warehouse solution for small parts storage with various purposes.

  • Space optimisation: Because of the compact storage and efficient space utilisation, you require 90% less storage space.

  • Higher picking efficiency: Goods-to-person principle creates short distances and increases picking performance up to 20 %

  • Safety through ergonomics: Individual working heights and safety systems reduce absences due to illness and increase employee satisfaction

  • More picking safety: Reduce costs through error-free picking with the assistance of innovative machine functionalities

  • Cleanliness and order make things efficient: shorter search and transport times, increased work safety, protection against errors in quantity and inventory data for delicate stored items

  • Digitalisation creates transparent processes - Quick overview, inventory security and traceability of stock simplify inventory and improve warehouse processes in a sustainable way

Vertical lift modules or circulation racks – what’s the difference?

These and other questions will be answered in our free Whitepaper Vertical Lift Modules. Here, you can discover all the valuable details about Vertical lifts and their...

Download now!

What are the advantages of a vertical lift module?

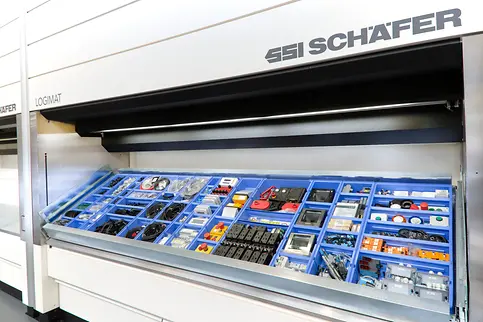

Picking at SSI LOGIMAT in combination with SSI WEASEL

Vertical Lift Module Options: added value through additional functions

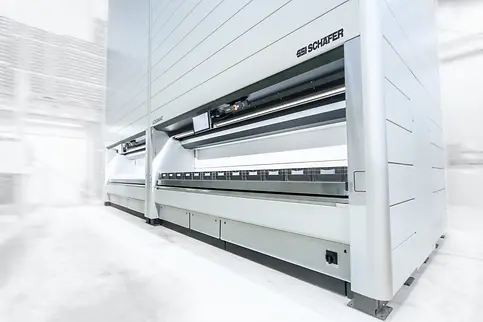

Vertical Lift Module LogiMat®

Features and Technical Data of the SSI LOGIMAT®

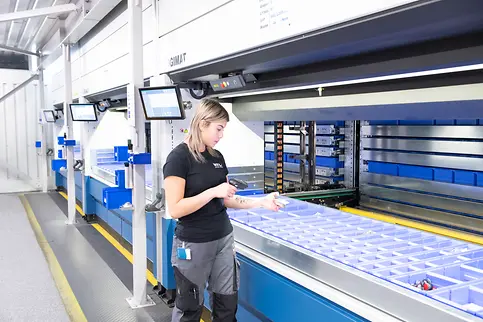

How Does a Vertical Lift Module Work?

The SSI LOGIMAT Vertical Lift Module can be compared to an oversized drawer cabinet with two rows of trays. Between the two rows is a lift, which pulls out the individual trays and moves them to the operator opening. There, the operating personnel can safely pick the goods. Thanks to a smart user interface, controlling the Vertical Lift Module is intuitive and simple.
The SSI LOGIMAT Vertical Lift Module offers various helpful add-on options that simplify picking significantly. For example, LOGIPOINTER can show the position by means of a laser pointer. By the way: each tray can be individually loaded with bins, cartons or used without any kind of partitioning.

Where do you use vertical lifts?

Vertical Lift Modules are used in many industries to store and retrieve different goods. It can be found in almost every sector.

  • E-Commerce

  • Healthcare & Cosmetics

  • Retail & Wholesale

  • Industrial

  • Automotive

The fields of application of Vertical Lift Modules are diverse:

  • Small Parts Storage

  • Item Management

  • Buffer Warehouse for Production

  • Order Consolidation

  • Storage and Picking of Service and Spare Parts

  • Storage of Unfinished/Semi-Finished Products

Different industries use different containers. The LOGIMAT Vertical Lift Module is very flexible and can be used for almost anything because the trays automatically align. If you need a solution, contact us and we will help you.

Cooperation C+C Krug and SSI SCHAEFER english

C+C Krug: The Path to Automation with SSI LOGIMAT® and WEASEL®

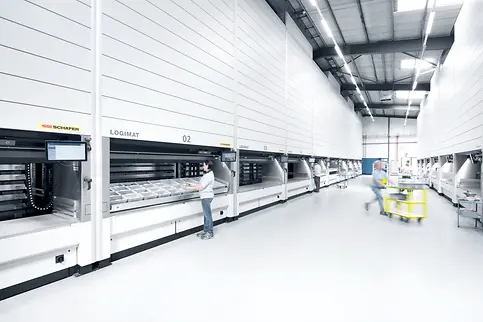

Vertical Lift Module LOGIMAT (Type SLL)

Case Study Müller Martini

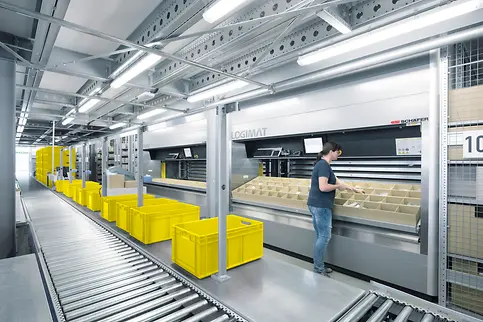

Vertical Lift Module LOGIMAT, Pallet Racking, mezzanine, conveyor system and

Case Study Niemann + Frey GmbH

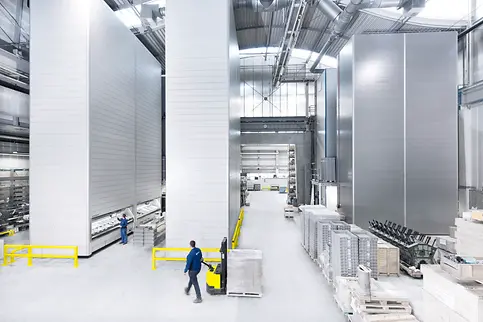

Complete view of LOGIMAT at QuantiParts

Case Study QuantiParts B. V.

DCH Auriga Logimat case study

Case Study DCH Auriga

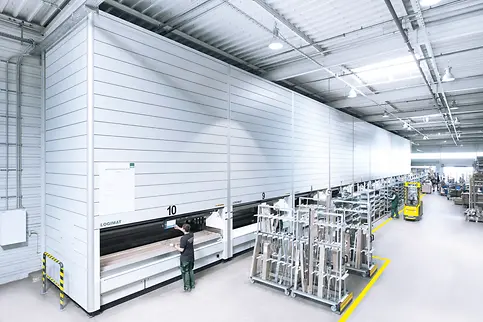

Full view of LOGIMAT reference VBH

Case Study VBH Holding GmbH

Software for Vertical Lift Modules

 From simple applications to complex warehouse management

In terms of software, our Vertical Lift Modules provide complete adaptability as well. The SSI LOGIMAT can work as a stand-alone solution or be connected to a higher-level ERP system like SAP. Navigation ranges from managing trays to handling articles and processing orders, with each project following a clear and dependable standard solution. If needed, this can be easily adjusted to fit your logistical needs with simple extensions.

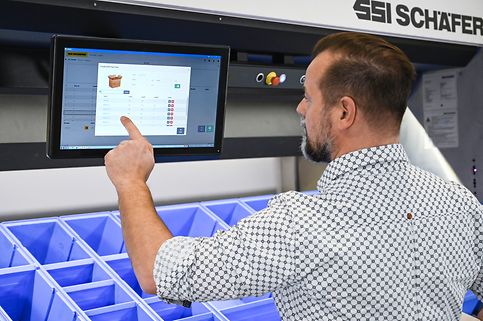

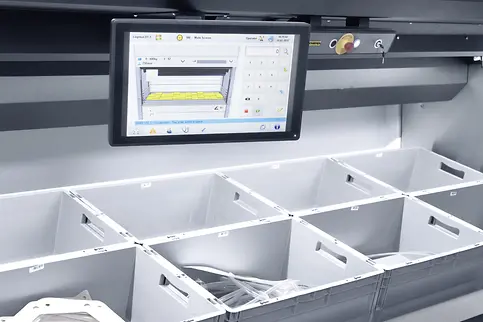

Picture of the LOGIMAT touch panel

Stand-Alone Controller for the SSI LOGIMAT®


LOGIONE: One Vertical Lift Module – One Software Solution

Vertical Lift Module LOGIMAT (Type SLL)

Direct Control of SSI LOGIMAT® with SAP

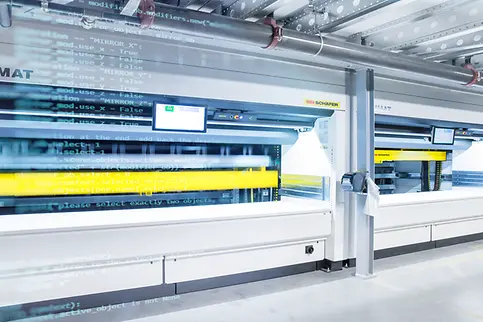

WAMAS ­­­­­­­­­­­­­­­­­­­­­­­­ Lift & Store

What is compatible with a Vertical Lift Module?

Vertical lift systems can be greatly improved by using the right components. When combined with our WEASEL Lite® Automated Guided Vehicles (AGV), transport routes can be automated quickly and easily. This saves time and money in the short term.

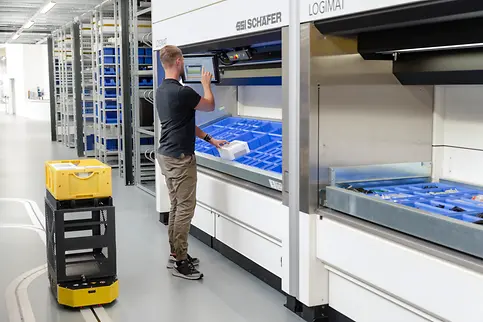

Picking at SSI LOGIMAT in combination with SSI WEASEL

SSI LOGIMAT® warehouse lift & WEASEL® Lite automated guided vehicle system

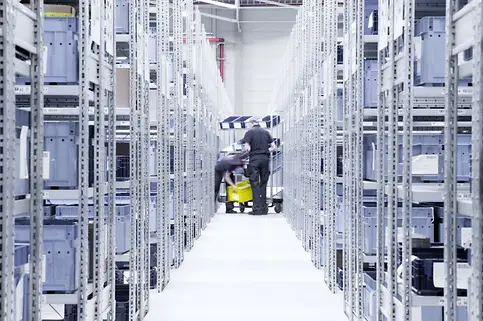

Legbordstellingen R 3000

Manual Storage of Small Parts

Euro size containers made of plastic from SSI SCHAEFER

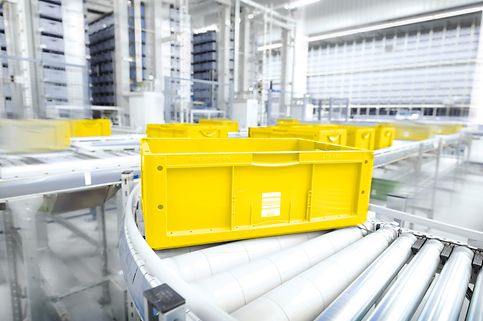

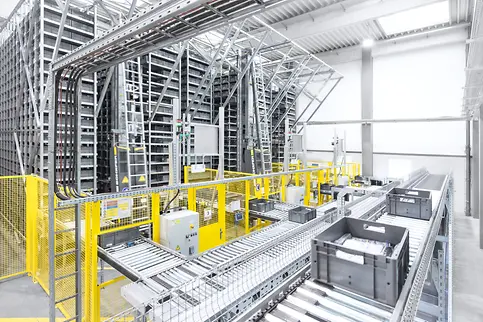

Conveying Systems for Small Load Carriers

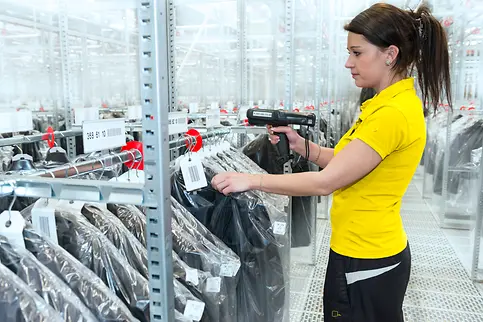

Picking of hanging garments with RFID scanner

Manual Picking


What is a vertical lift module and how does a vertical storage system work?
Here you will find the answers to frequently asked questions about how the systems work, the cost, and what distinguishes a vertical lift module from a paternoster rack system.

A vertical lift module is a compact, partially automated system which simultaneously takes on both storage and picking functions. It takes up very little floor space, as the items are stored upwards – as in a tower. This makes perfect use of your room height, and gives you high-density storage. There is space for all kinds of goods in a vertical lift module, not just small parts. There is also room for long goods, tools, and whole cartons. With different bin systems, you can create safe and efficient storage solutions for your items.

Vertical lift module operation
Items are stored and retrieved via the operator opening: the vertical lift module transports the relevant tray to the retrieval point, so that the warehouse staff can pick the items in accordance with the goods-to-person principle. Within the storage system, the stored goods are taken to the optimum storage position on a tray.

Benefits of a vertical lift module
The storage towers have a range of benefits compared to static storage systems such as static racking or pallet racking. These include optimized picking processes, as well as making full use of the ceiling height. You save time and money, because you no longer have to walk to racks that are a good distance away, for instance. The time that you save can be put towards processing the next order. The ergonomic design of the vertical lift modules also provides a safer working environment for your employees, as they do not have to bend, stretch, or use a step or a ladder. The storage systems also help to achieve high quality picking. Finally, the enclosed design of the tray system helps to protect the items against dirt and dust. So as you can see, a vertical lift module is a true all-rounder.

The vertical lift module and its possible applications.
SSI SCHAEFER's Vertical Lift Module is called the SSI LOGIMAT®, and is already being successfully used in many projects worldwide. Typical applications include a replacement parts or tool store directly in the production area, the dispatch warehouse, the buffer store, or the assembly line supply area.

Discover the use cases.

A vertical lift module, also known as tray lift and lift storage system, is an automated storage system for small parts. A vertical lift module resembles an oversized drawer cabinet made from metal with two large warehouse areas (carrier areas). The carrier areas can be compared to a rack structure. Trays, similar to rack compartments, that are used to accommodate bins are placed by a lift in a storage compartment in the carrier areas of the vertical lift module.

On the front of a vertical lift module is an operating panel and an opening to retrieve and store small parts. At the push of button on the control panel, the trays are retrieved from the correct storage compartment and moved to the operator opening. This procedure is called the goods-to-person principle. The intelligent software control knows the storage compartment and storage location of all stored small parts and supports efficient and space-saving warehousing in very little space.

See how it works here.

With a paternoster system or vertically rotating rack, a vertical carousel takes all the storage locations to the operator station. The stored goods move along with the entire storage rack. This is why modern small parts warehousing systems are often based on the vertical lift module system. In this system, each tray can be moved individually. Speeds are increased and the height of goods storage is flexible.

Our free whitepaper contains more information about rotating racks and vertical lift modules.

A tray has a minimum width of 4,025 mm and a depth of 815 mm. Depths up to 1,323 mm are possible on request. The tray can be loaded up to a height of 590 mm. These are also the maximum dimensions for an item that is to be stored.

In most applications, small parts are stored in bins. This makes ideal use of the available tray surface. The usual bin sizes here range from 100 x 100 x 100 mm to approx. 400 x 600 x 220 mm.

It is a very flexible approach: additional typical areas of application for vertical lift modules include the storage of long goods, heavy tools (crane operated), posters, catalogs, or labels.

Talk to us! Our experts will advise you and help you to find the perfect solution.

The storage area is defined by the height of the unit, the height of the goods to be stored, and the size of the tray.

Example: With a unit height of 7.5 m and a goods height of 220 mm, 48 trays will fit into the SSI LOGIMAT® Vertical Lift Module. If the tray size is 3,025 x 815 mm, this means a storage area of about 120 m².

This storage area is available on a footprint of approx. 11 m².

Let our experts advise you how to get the maximum storage space from your warehouse!

The price of an SSI LOGIMAT® Vertical Lift Module depends primarily on the size (width and height), the number of trays, the carrying capacity, and the requested options. As it is a highly standardized, modular system that is tailored to meet individual customer requirements before delivery, the price is extremely low compared to other automated storage systems. For conventional applications, the cost of acquiring a vertical lift module like this is between 35,000 and 65,000 euros, including installation.
