Coca-Cola Europacific Partners Australia

Coca-Cola Europacific Partners Australia

SSI SCHAEFER is proud to have partnered with Coca-Cola Europacific Partners Australia, previously know as Coca-Cola Amatil, to deliver their automated state-of-the-art facility featured in a series of recent corporate videos released by the customer, one of the largest bottlers and distributors of beverages in the Asia Pacific region.

Following an open request for tenders by Coca-Cola Amatil (now known as Coca-Cola Europacific Partners Australia), SSI SCHAEFER‘s recommended solution was selected for the state-of-the-art 30,000m² distribution centre in Brisbane, Queensland.  Working closely with the customer and backed by SSI SCHAEFER’s extensive experience in mixed case robotic palletising, a concept was created which matched Coca-Cola Amatil‘s priorities for the site of having a flexible, agile and accurate system that supported the delivery profile of their business as well as the storage capacity and necessary throughput.  Providing a system that met their proud safety culture was also a priority.  The concept integrated both case picking with bulk storage and delivers a very flexible system, with both high utilisation and availability, picking more than 2.5 million cases annually.

Storage density with high throughput

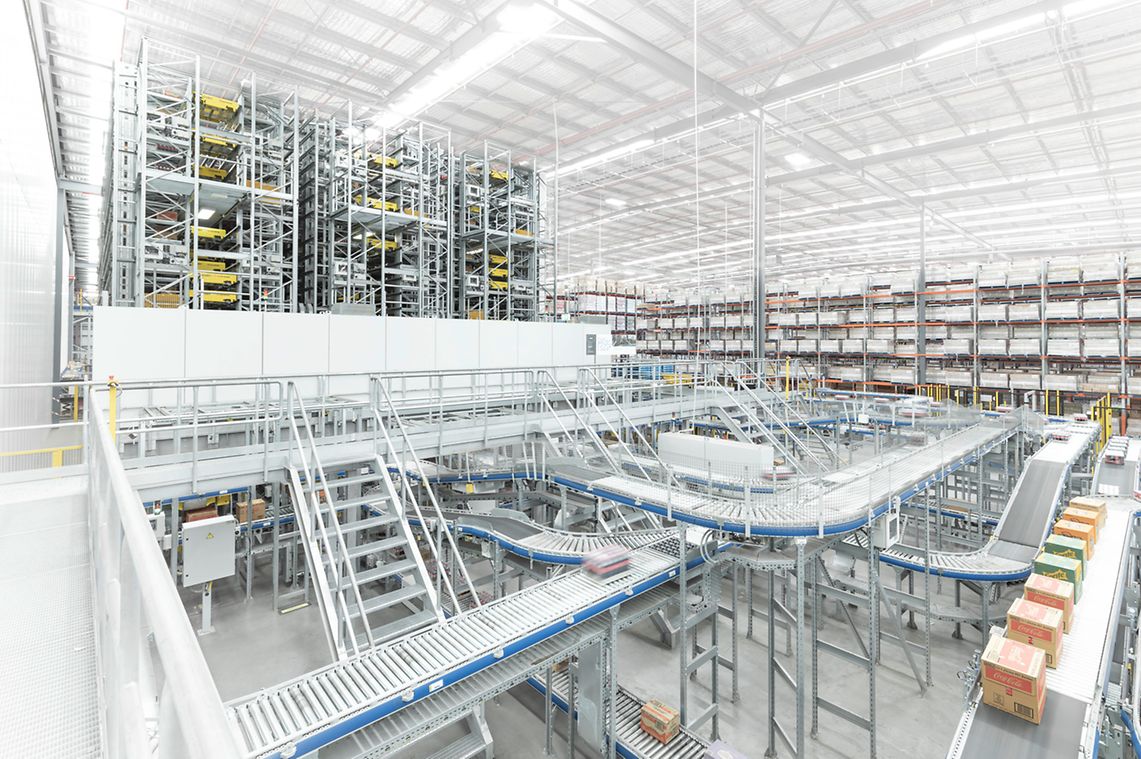

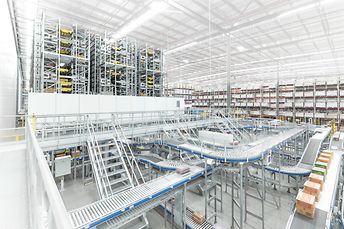

The SSI SCHAEFER design features their unique SSI Lift&Run technology which provides high storage density at the same time as high throughput.  The SSI Lift&Run High Bay Warehouse (HBW) receives full pallets via an airbridge directly from the adjacent bottling plant. The system provides for the automatic storage and retrieval of more than 30,000 pallets over 7 levels and includes 12 SSI Lift&Run cranes in 4 aisles and an extensive pallet conveyor system with multiple pallet lifts.

Agile and accurate system

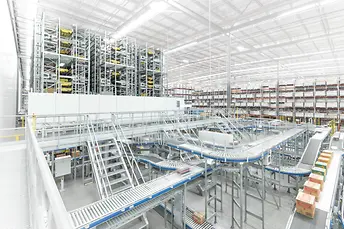

Adjacent to the SSI Lift&Run High Bay Warehouse, SSI SCHAEFER installed an Automatic Case Picking (ACP) system.  The proximity and direct link to the HBW enables automatic pallet replenishment direct from the HBW.   Full pallets are conveyed to the ACP from the Automated Storage and Retrieval System (ASRS) where they are automatically delayered by a depalletising robot, case wheeler and Intralox case singulation.  The individual cases are then stored directly in a 3-aisle SSI Cuby trayless shuttle case buffer system.

Increased safety

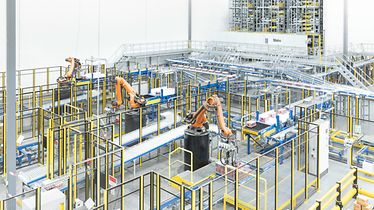

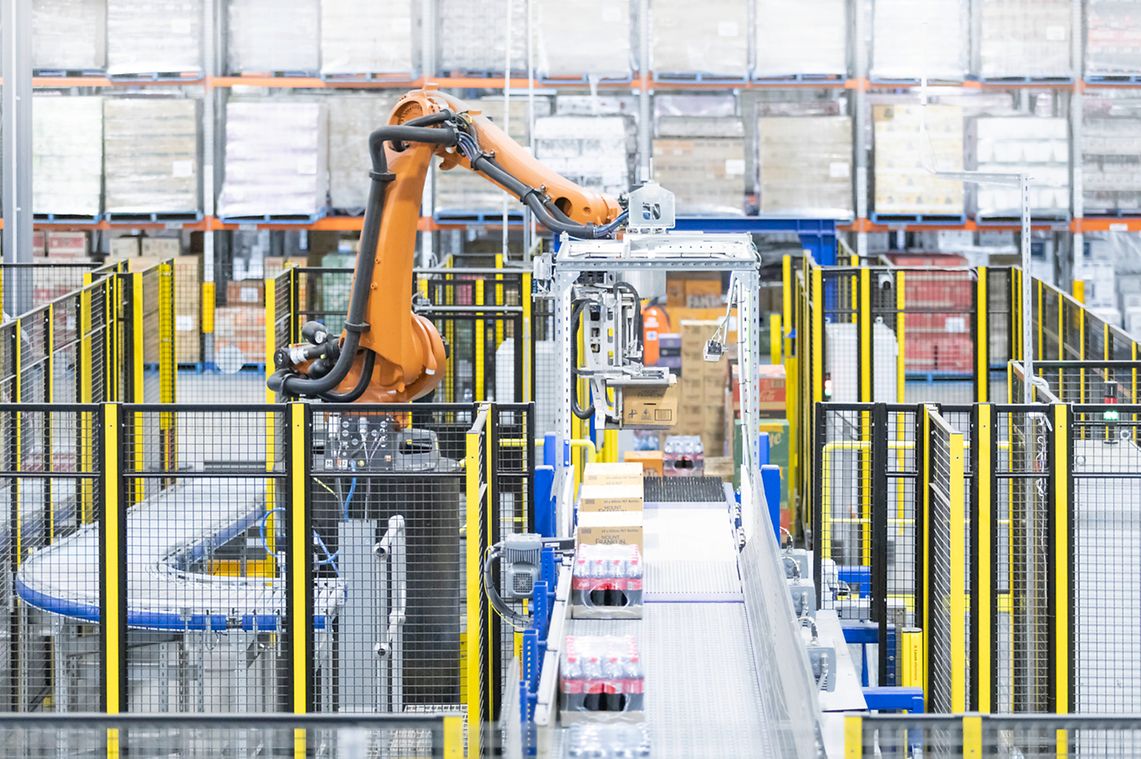

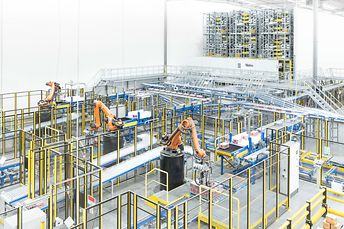

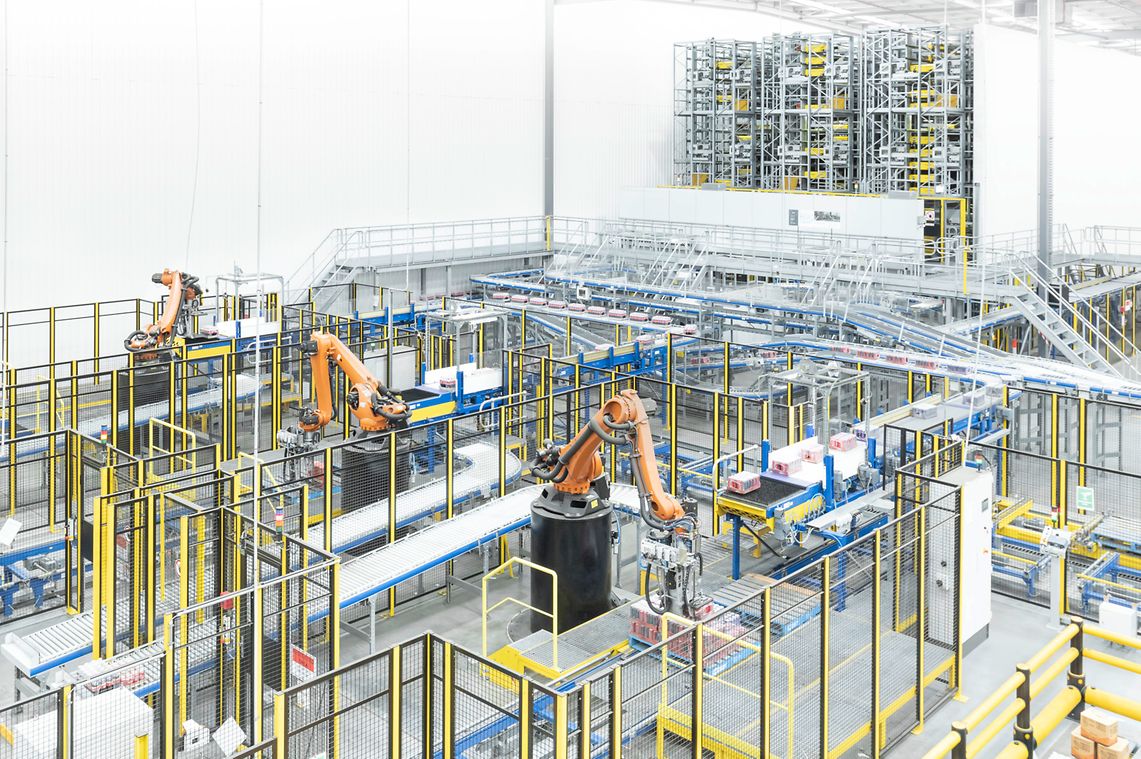

Required cases are sequenced out of the SSI Cuby case buffer to one of three robots for automatic palletising.  The robot palletises the fastest moving top 30 SKUs for the customer's route trade, picking over 2.5 million cases annually.

​​​​​​​Flexible system supporting their business model

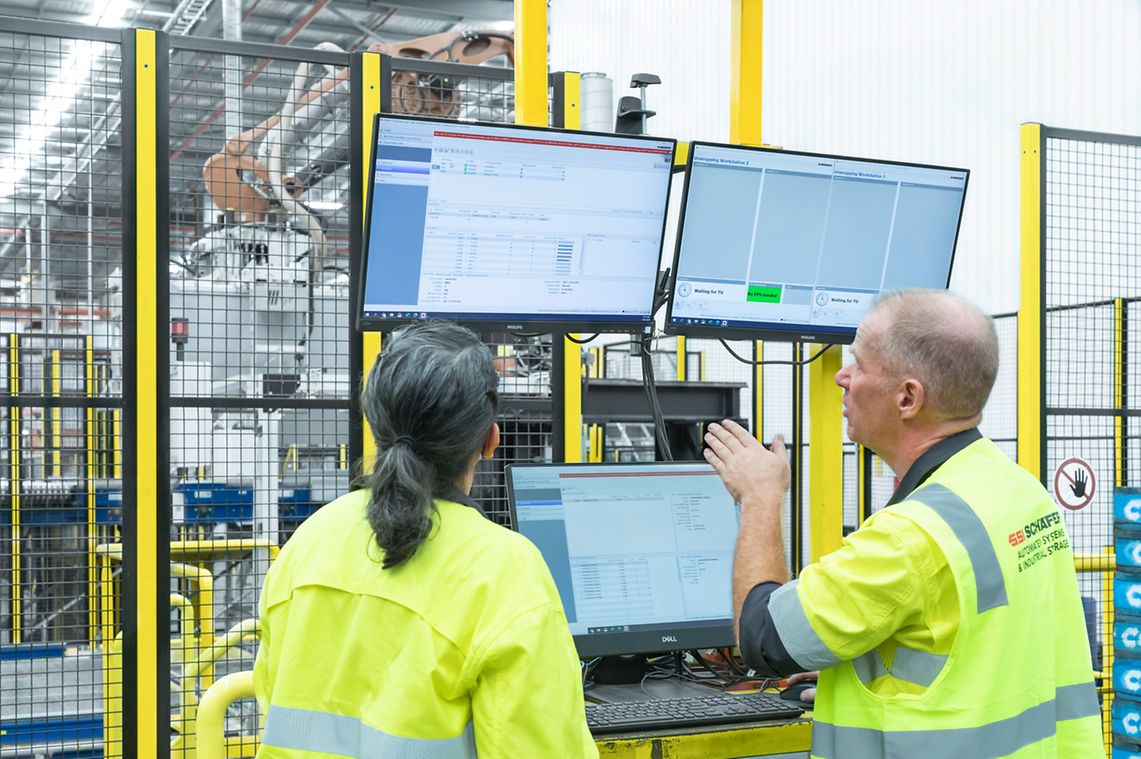

All components are controlled by SSI SCHAEFER’s WAMAS® Warehouse Control System which interfaces directly to the on-site SAP host EWM system.  This includes SSI SCHAEFER’s world leading Schaefer Pack Pattern Generator (SPPG) module, which is responsible for building stable and dense pallets.

Ensuring best system performance

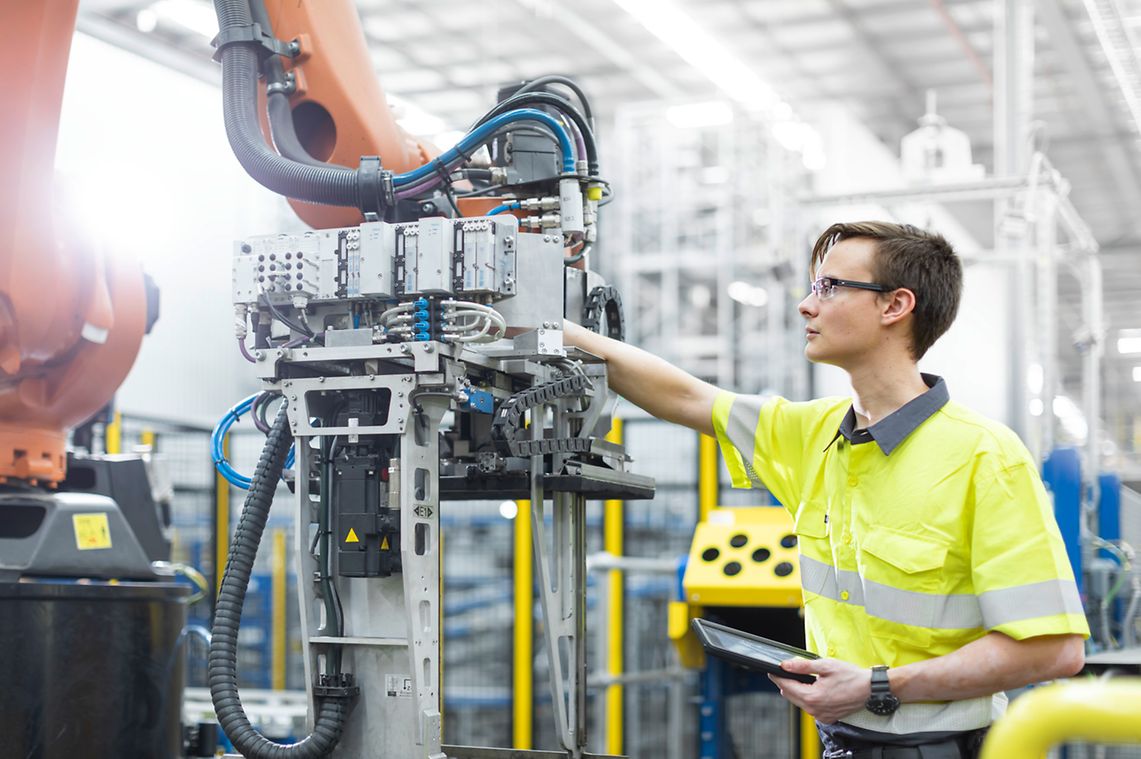

A key aspect to ensuring the best performance of the system is the SSI Resident Maintenance® team who not only maintain the equipment in direct consultation with the customer partners, but also continue to optimise and improve reliability and throughput.  Through SSI SCHAEFER’s Computerised Maintenance Management System (CMMS), all actions by the maintenance team are captured and logged using handheld terminals, building up a database of root causes for all stoppages which feeds into collaborative continuous improvement actions for the maintenance and operations teams.

The design provided Coca-Cola Amatil (now Coca-Cola Europacific Partners Australia) with a compact yet resilient automated storage solution which allowed it to meet its goal of implementing a new warehouse on the production site, with an airbridge conveyor link directly from production.  The solution met all of Coca-Cola Amatil’s requirements in terms of storage, throughput, expandability and redundancy.
