The SSI LOGIMAT® has a wide range of different model widths and depths, provided as standard.
With increasing tray sizes, the dimensions of the vertical lift change.

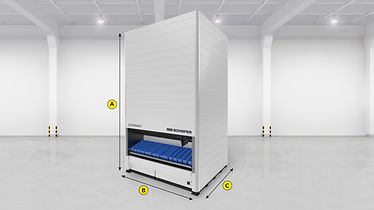

Usable tray dimensions (mm)
B width (mm) incl. Paneling
A depth (mm) incl. paneling
1.825 x 625
2.370
2.712
1.825 x 815
3.092
2.025 x 625
2.570
2.025 x 815
2.425 x 625
2.970
2.425 x 815
2.825 x 625
3.370
2.825 x 815
3.025 x 625
3.570
3.025 x 815
3.225 x 625
3.770
3.225 x 815
3.625 x 625
4.170
3.625 x 815
4.025 x 625
4.570
4.025 x 815
Minimum height: 2,450 mm
Maximum height: up to 23,850 mm in 100 mm increments
C height of operating opening: 1,950 mm (depending on leveling)
Tray load capacity: up to 700 kg
Machine load capacity: up to 80 tons
