Technical Data

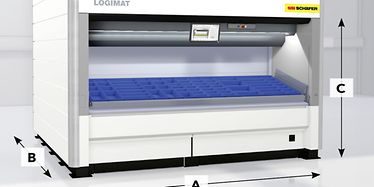

With increasing tray sizes, the dimensions of the vertical lift change.
Usable tray dimensions (mm) | B width (mm) incl. Paneling | A depth (mm) incl. paneling |
1.825 x 625 | 2.370 | 2.712 |
1.825 x 815 | 2.370 | 3.092 |
2.025 x 625 | 2.570 | 2.712 |
2.025 x 815 | 2.570 | 3.092 |
2.425 x 625 | 2.970 | 2.712 |
2.425 x 815 | 2.970 | 3.092 |
2.825 x 625 | 3.370 | 2.712 |
2.825 x 815 | 3.370 | 3.092 |
3.025 x 625 | 3.570 | 2.712 |
3.025 x 815 | 3.570 | 3.092 |
3.225 x 625 | 3.770 | 2.712 |
3.225 x 815 | 3.770 | 3.092 |
3.625 x 625 | 4.170 | 2.712 |
3.625 x 815 | 4.170 | 3.092 |
4.025 x 625 | 4.570 | 2.712 |
4.025 x 815 | 4.570 | 3.092 |
