SSI Pallet Roaming Shuttle: Maximum Efficiency for Your Pallet Warehouse

Smart, fast, scalable: Discover our four-way shuttle system for warehouse automation in the tightest spaces!

Flexible and Powerful: The Intelligent Shuttle System for SMEs

The SSI Pallet Roaming Shuttle is the scalable four-way shuttle solution for your entry into warehouse automation. With lifts and intelligent fleet control, this compact shuttle system ensures flexible and secure pallet transport between storage levels—while delivering high throughput and fast access times. Whether retrofit or new build, deep-freeze environments or complex layouts: this smart pallet shuttle adapts to your needs!

Your Benefits

  • Up to 65% more storage capacity through maximum space utilization

  • Lower operating costs thanks to energy-efficient technology

  • Exceptional inventory accuracy through clear pallet identification and automated processes

  • Flexible use—even with low ceilings and in deep-freeze warehouses down to -25 °C

  • Fast ROI and optimal scalability thanks to modular design

Automated Pallet Storage to the Power of Four

The system is based on innovative four-way shuttle technology that moves pallets in every direction—horizontally, vertically, and in depth. This enables direct access to any storage position without time-consuming relocations. The smart combination of racking, control, and software delivers exceptional storage density and makes the most of your available space.
The intuitive software also allows convenient remote monitoring and control, including features such as temperature checks, motor parameters, and remote operation of individual components. Intelligent fleet management with dynamic task allocation and congestion prevention ensures system stability at all times.
Seamless integration into the SSI software landscape and existing IT systems makes the SSI Pallet Roaming Shuttle a cost-effective, future-proof entry into automated pallet storage—for businesses that plan ahead.

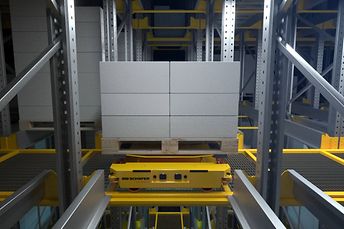

ssi-roaming-pallet-shuttle_visual-2

Ready for Your Smart Shuttle Warehouse? Let’s Talk!

Want to learn more about your options with the SSI Pallet Roaming Shuttle? Schedule your personal consultation today! We look forward to your project.

Get Expert Advice Now

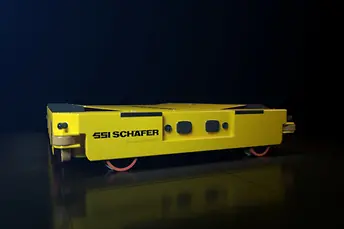

ssi-roaming-pallet-shuttle_visual-3

Technical Data

SSI Pallet Roaming Shuttles are the energy-efficient 4D solution for maximum flexibility in pallet storage.




Load Capacityup to 1,500 kg
Temperature Range-25 °C to +50 °C
Speed1.4 / 1.8 m/s
BatteryLithium 100 AH
ChargingAutomatic charging during idle phases and regenerative braking
CommunicationMeshed Wi-Fi network
Operating Time8 h at room temperature / 6.6 h in deep-freeze down to -25 °C

Our partnership with Moffett Automation

Learn more about our partnership with Moffett Automation here.

Read more

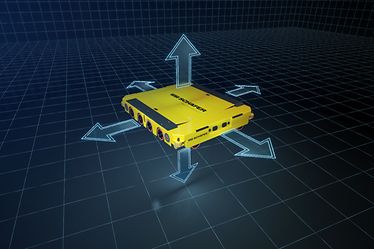

3D_Image_SSI-Pallet-Roaming Shuttle(1)

Warehouse Automation for SMEs

Looking to take your first step toward automation? SSI Pallet Roaming Shuttles are the ideal solution: the modular shuttle system can be deployed economically in any environment, even with limited storage volume. Automated processes reduce labor requirements, while the low investment risk gives you immediate efficiency and planning security.

Outstanding Space Utilization for Maximum Storage Density

A shuttle moves full pallets weighing up to 1.5 tons across all levels, even in multi-deep storage structures. Since wide travel aisles aren’t required, you gain significantly more usable storage space. The compact design and four-dimensional mobility of the pallet shuttles ensure optimal use of every inch.

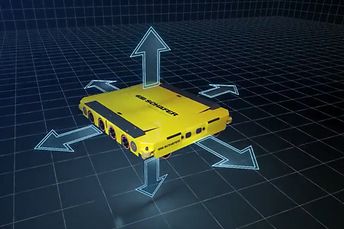

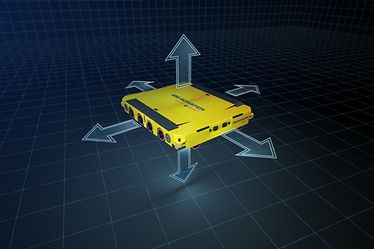

ssi-roaming-pallet-shuttle_visual-1

Low Operating Costs and Energy-Efficient Performance

With speeds of up to 1.8 meters per second, SSI Pallet Roaming Shuttles dramatically increase your throughput. At the same time, short travel paths and smart charging functions keep energy consumption extremely low. Thanks to intelligent sensors, the shuttles even operate reliably in the dark, allowing you to minimize or eliminate nighttime lighting. This reduces ongoing costs and makes your operation sustainably efficient.

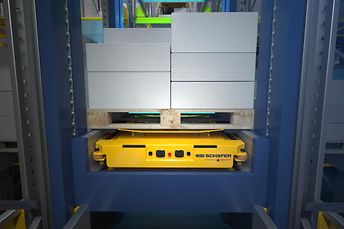

ssi-roaming-pallet-shuttle_visual-2

Efficient Pallet Handling with the SSI Pallet Roaming Shuttle

  • Highly Flexible Shuttle System
    Four-dimensional mobility means more dynamics, more throughput. Every shuttle can access any pallet and deliver it to its destination. The intelligent software calculates the optimal route for storage, retrieval, and relocation—an unloaded shuttle can even pass underneath stored pallets to shorten travel paths.

  • More Capacity in Your Pallet Warehouse
    High-density storage maximizes your available space, making automation pay off even in small areas. Compared to VNA solutions (semi-automated narrow-aisle vehicles), the four-way shuttle system offers up to 65% more storage capacity.

  • Perfect for Retrofits and Upgrades
    Complex layout? Ceilings too low for high-bay racking? No reason to skip automation! The modular shuttle system is ideal for retrofits and integrates seamlessly into existing buildings and structures.

  • Scalable for Future Growth
    SSI Pallet Roaming Shuttles enable automation where it once seemed too complex or costly. The shuttles are easily configurable and can be scaled by adding more vehicles as your storage volume grows, making them the perfect solution for SMEs.

  • Smart and Seamless
    The SSI Pallet Roaming Shuttle software not only calculates the most efficient route but also coordinates all active shuttles in real time. It integrates easily into your existing WMS and WCS via defined interfaces.

  • Roaming in Deep-Freezing Conditions
    The robust SSI Pallet Roaming Shuttle is ideal for temperature-controlled logistics and helps maintain the cold chain by accelerating your processes. In deep-freeze environments, average operating time reaches over 80% compared to room temperature.

FAQ

They’re suitable for any pallet warehouse—from complex layouts to temperature-controlled logistics. Thanks to four-way mobility and smart control, they work in both existing buildings and new facilities, making them ideal for SMEs looking to automate in tight spaces.

The system is designed for full pallets. Every shuttle can access, pick up, and move any pallet—even in multi-deep storage structures.

Up to 1,500 kg per pallet.

Absolutely! SSI Pallet Roaming Shuttles operate reliably down to -25 °C, achieving over 80% of normal operating time compared to room temperature.

Navigation is handled by smart software that calculates the optimal route for every storage, retrieval, and relocation task. Shuttles communicate via a meshed Wi-Fi network and coordinate routes in real time. An unloaded shuttle can even pass under stored pallets to shorten paths.

Minimal structural work compared to high-bay or VNA solutions. The system fits almost any warehouse, even in very tight spaces.

Pricing depends on your specific requirements. We’ll gladly provide a custom quote!
