SSI Carrier

The SSI Carrier system is a modular pocket conveyor with numerous options

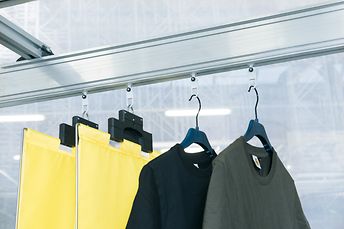

The heart of the SSI SCHAEFER overhead conveyor technology is the primary load carrier, which is a roller adapter on an inner rail. You can manually connect your various secondary load carriers to this adapter or integrate them as a fully-automated system. These secondary load carriers could be clothes hangers, pockets, or sturdy boxes.

The roller adapter and hanging load carriers include an RFID transponder. As a consequence, this conveying system is extremely reliable. As an alternative, barcodes can also be used. High throughput, low maintenance, and universal usage for goods weighing up to 3 kilograms are just some of the key features of this SSI SCHAEFER Carrier system.

Numerous functions united in one system

One of the most unique features of our SSI Carrier system is its flexibility. One load carrier enables accumulation, buffering, distributing, and sorting of goods.

SSI CARRIER: THE INTELLIGENT WAY FROM LOADING TO PACKAGING

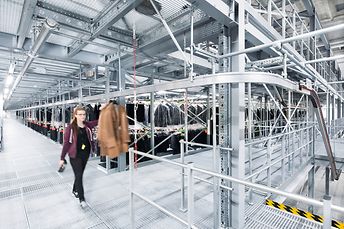

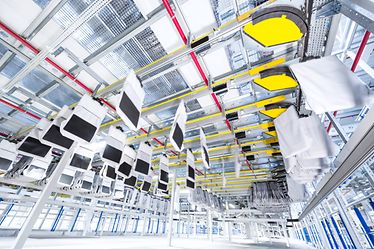

The SSI Carrier is a modularly designed pocket conveyor used for hanging transport of different items like shoes, electrical devices, toys, household appliances, cosmetics and garments.

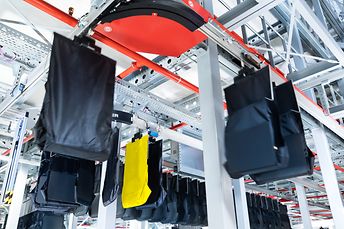

SSI CARRIER - The intelligent pouch sorter system

The intelligent and modular pouch sorter SSI Carrier is SSI SCHAEFER'S latest extension of their product range for eCommerce and multi-channel distribution. With this product SSI SCHAEFER developed a highly compact and multifunctional overhead conveying system.
The innovative SSI Carrier system impresses particularly by its flexibility in use. Accumulating, buffering, distributing and sorting are all facilitated with one single load carrier type. A performance of up to 10,000 load carriers per hour, low-maintenance operation and effective integration of returns excel the pouch sorter system.

SSI CARRIER - BENEFITS AND ELEMENTS

Reliable, versatile and unique

  • Carrier: A roller adapter capable of reliably transporting a diverse range of load carriers and identifying them via RFID or barcode. The large opening is ideal for a broad product spectrum.

  • Circulation conveyor: There are almost no limits to the length of the overall conveyor. It is capable of transporting both horizontally and vertically up to an incline of 30°.

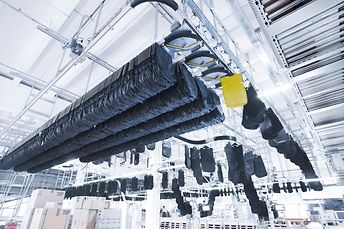

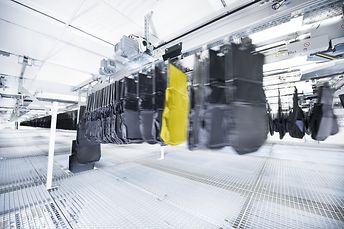

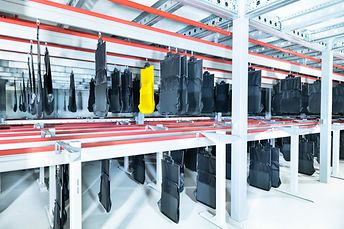

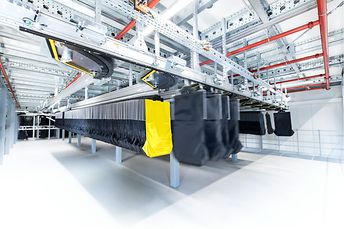

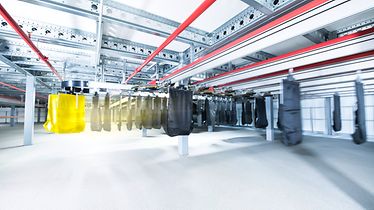

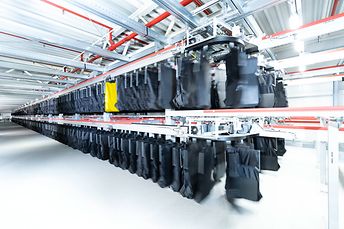

  • Accumulation conveyor: The accumulation conveyor serves to transport, accumulate, single, sort, and buffer the load carriers on horizontal conveying sections. The carrier combines both the transport and accumulation functions. A broad variety of goods densities can be transported without having to define the spacing.

  • Diverter: The switch and branching element connects the circulation and accumulation conveyor sections. The Diverter can be positioned anywhere along the route, enabling you to completely customize the route layout.

  • High system performance of up to 10,000 parts/load carriers per hour

  • Extremely high sorting accuracy, load securing, and process reliability

  • Lying goods and hanging goods can be transported at the same time

  • User-friendly due to easy operation

  • Flexible due to optimum space usage

  • Long service life, low maintenance

  • Cost-effective implementation of dynamic warehouses

  • Precision and error prevention through RFID

  • Optimize the sorting process

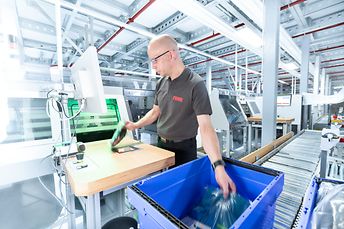

  • Rapid re-availability of returns

POCKET CONVEYOR

The highly-dynamic pocket sorter system for eCommerce and multi-channel distribution.

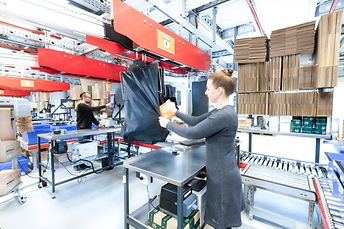

The intelligent way from loading to packaging

The SSI Carrier is a modularly designed pocket conveyor used for hanging
transport of different items like shoes, electrical devices, toys, household
appliances, cosmetics and garments.
